Axor iBox Universal 2 Basic Set ˝" and ľ"

Axor iBox Universal 2 Basic Set ˝" and ľ" - 01400180 by Axor

HELP

Installation is now twice as fast with the new Hansgrohe iBox universal 2 and pre-fab sets than it was with the previous model. It combines the proven advantages with plenty of new properties and additional uses. So you can do your job as accurately as possible in no time at all. The iBox universal 2 is even more precisely tailored to the needs of bathroom experts than its predecessor. Let’s head for the future together with this ultra-efficient product.

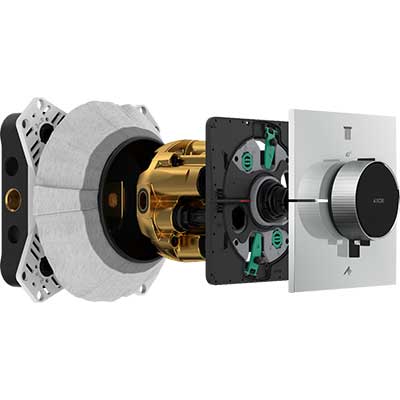

Images are for illustration only.

F E A T U R E S HAN0004433

01400180

Axor iBox Universal 2 Basic Set ˝" and ľ" - 01400180

suitable for all new shower, bath tub and thermostat finish sets for concealed installation (AXOR ShowerSelect ID)
in conjunction with adapter plate (# 13588000) compatible with other concealed shower, bath tub and thermostatic mixer finish sets
Material: dezincification brass, EPP foam, heat and sound insulating
Connection thread Rp ˝
Operating pressure: min. 1 bar/max. 10 bar
rotationally-symmetrical installation
flexible mounting ring for different mounting situations
mounting ring adjustable in 5 mm steps
mounting ring suitable for front and rear installation
no shortening necessary thanks to sliding sleeve
support aid for the spirit level
integrated spirit level for correct horizontal and vertical alignment
sealing foil permanently fixed
Power supply: M16 flexible conduit
minimum mounting depth: 80 mm
maximum mounting depth: 108 mm
