Viega Prevista Dry 112cm WC Frame Set with Style 20 Chrome Plate

Viega Prevista Dry 112cm WC Frame Set with Style 20 Chrome Plate by Viega

HELP

THE NEXT GENERATION OF PRE-WALL TECHNOLOGY.Easy installation, maximum design freedom: We poured all our experience and your ideas into the development of our new pre-wall system. The result is Viega Prevista: the new generation of pre-wall technology. It will save on working time, and offers you and your customers optimum levels of comfort.

Viega Prevista Dry 112cm WC Frame Set with Style 20 Chrome Plate By Viega

Images are for illustration only.

F E A T U R E S VIE0000030

804190

Viega Prevista Dry 112cm WC Frame Set with Style 20 Chrome Plate

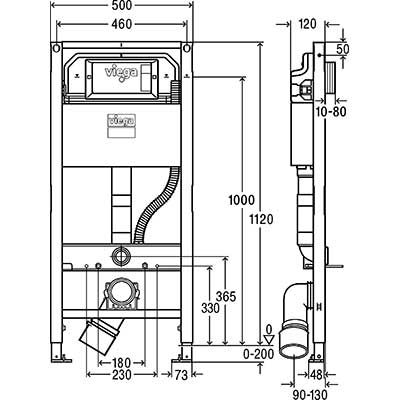

Height: 1120 mm
with shower WC connection
for pre-wall mounting Dry fixing set
in addition optional available Prevista Dry support set
steel, PE
compatible with all WC flush plates for Prevista
integration in Prevista Dry Plus,
dual flush technology
Barrier-free
Equipment
powder-coated frame (40x40), concealed cistern 3H, flushing throttle, empty pipe for shower WC connection, WC connection fitting, fixing material, lockable foot for adjusting the construction height, water connection R˝ at the back and top, WC connection elbow DN90 (depth-adjustable) made of PP, eccentric adapter DN90/100 made of PP
Technical data
- Small flush volume factory setting approx. 3 l
- Small flush volume setting range approx. 2–4 l
- Large flush volume factory setting approx. 6 l
- Large flush volume setting range approx. 3.5–7.5 l
- Max. load 400 kg
- Max. projection 700 mm
Dry Fixing Set
- for fixing of the Prevista Dry elements
- single mounting direct on the installation body
- corner mounting on solid or metal support profiles
- depth-adjustable 120–200 mm
- fixing possibilities for cladding
Viega 5 Year Guarantee
Style 20 Dual Flush Plate
- Gloss Chrome Plated
- Material : Plastic

RRP

OUR PRICE

inc. V.A.T.

Dual Flush Plate
